Standard-Density COB

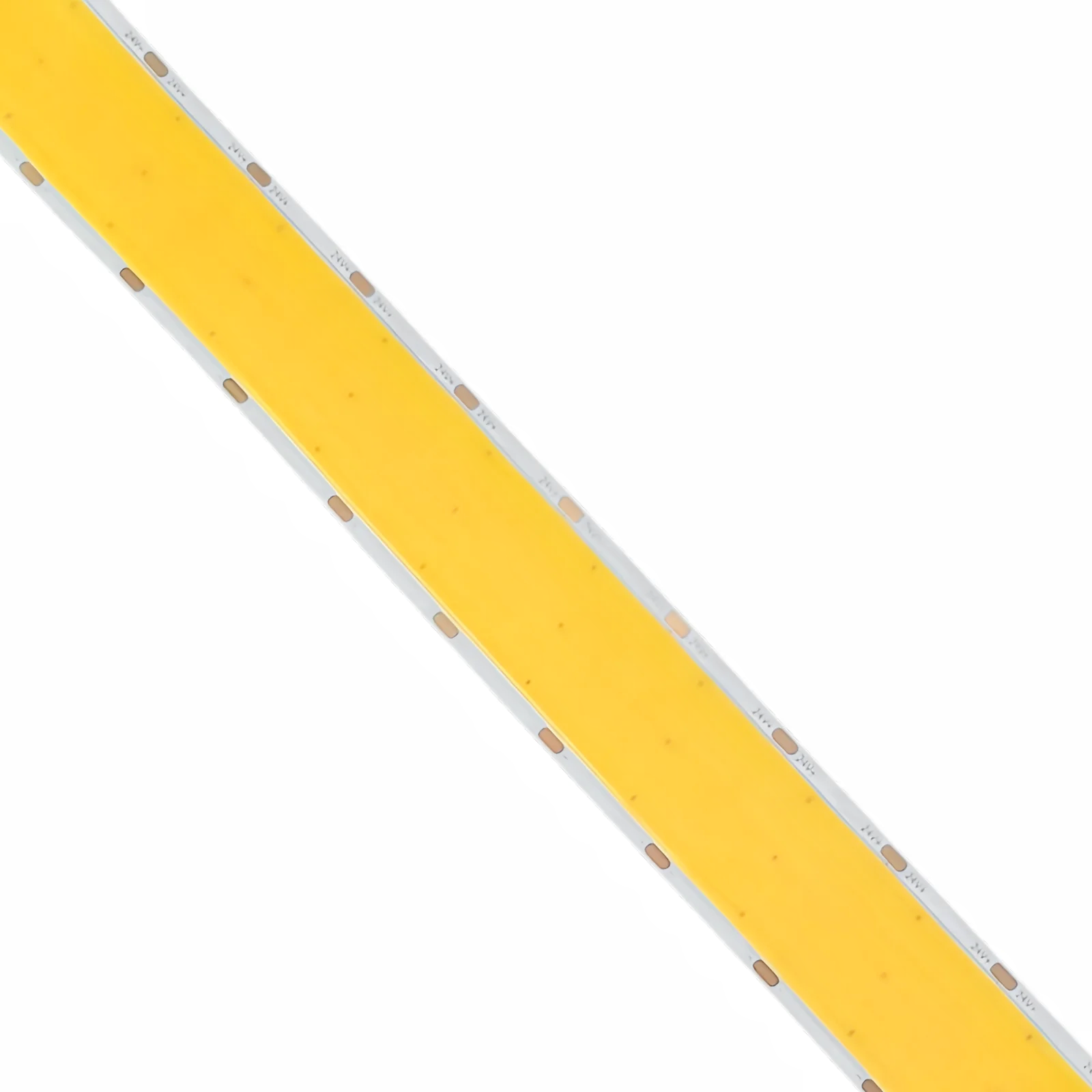

LUMSET® COB Strip | Wide PCB | 960 LEDs/m | 24V | CRI90+ | Project Lighting

  • Voltage
    DC 24 V
  • Cutting Interval
    50 mm (24 V)
  • Power
    25 W/m
  • PCB Width
    15 mm
Ask about this product

Intro description


− +
LUMSET® COB Strip | Wide PCB | 960 LEDs/m | 24V | CRI90+ | Project Lighting (Model: LS-COB-WP-960-15MM-24V-25W-C500-PB)
Common specs: LED Tech: COB LED Density: 960 LEDs/m Voltage: 24V PCB Width: 15mm Power: 25W/m CRI (Ra): > 90 Cut: 50mm (C500) Supply: PB SDCM: < 3 IP: IP20 Encapsulation: Bare PCB
Variant Voltage PCB Width Power (W/m) CCT / Color Cutting Interval IP Encapsulation
COB · 960 LEDs/m · 15mm · 24V · PB · SDCM < 3 · C500 · 2700K 24V 15 mm 25 W/m 2700K 50 mm IP20 Bare PCB
COB · 960 LEDs/m · 15mm · 24V · PB · SDCM < 3 · C500 · 3000K 24V 15 mm 25 W/m 3000K 50 mm IP20 Bare PCB
COB · 960 LEDs/m · 15mm · 24V · PB · SDCM < 3 · C500 · 4000K 24V 15 mm 25 W/m 4000K 50 mm IP20 Bare PCB
COB · 960 LEDs/m · 15mm · 24V · PB · SDCM < 3 · C500 · 6500K 24V 15 mm 25 W/m 6500K 50 mm IP20 Bare PCB
Tip: Please add to cart based on the specifications in the table.
Supply codes: NP = Roll-to-Roll (non-panelized continuous roll); PB = Panelized (spliced board segments).


Technical Specifications

Model / SKU Code
LS-COB-WP-960-15MM-24V-25W-C500-PB
Brand
LUMSET
Product Form
LED Strip
FPCB
Panelized
Current Type
Constant Voltage
Max Run Length (m)
5
LED Density (LEDs/m)
960
Structure
Single Row
Adhesive
3M
Roll Length
5m
Warranty
2 Years
Certifications
  • CE
  • RoHS

Recent products

Frequently Asked Questions

Why is this strip made with a wider PCB (15mm)?
A wider PCB helps support higher-output designs and improves thermal stability for project-grade installations.
What is the cutting interval?
This 24V version is cuttable every 50 mm (C500). Always cut only at the marked cut points.
Which color temperatures are available?
This series supports 2700K / 3000K / 4000K / 6500K.
See All FAQ

Downloads

  • Optical Test Report
  • Datasheet
  • Manual

Application

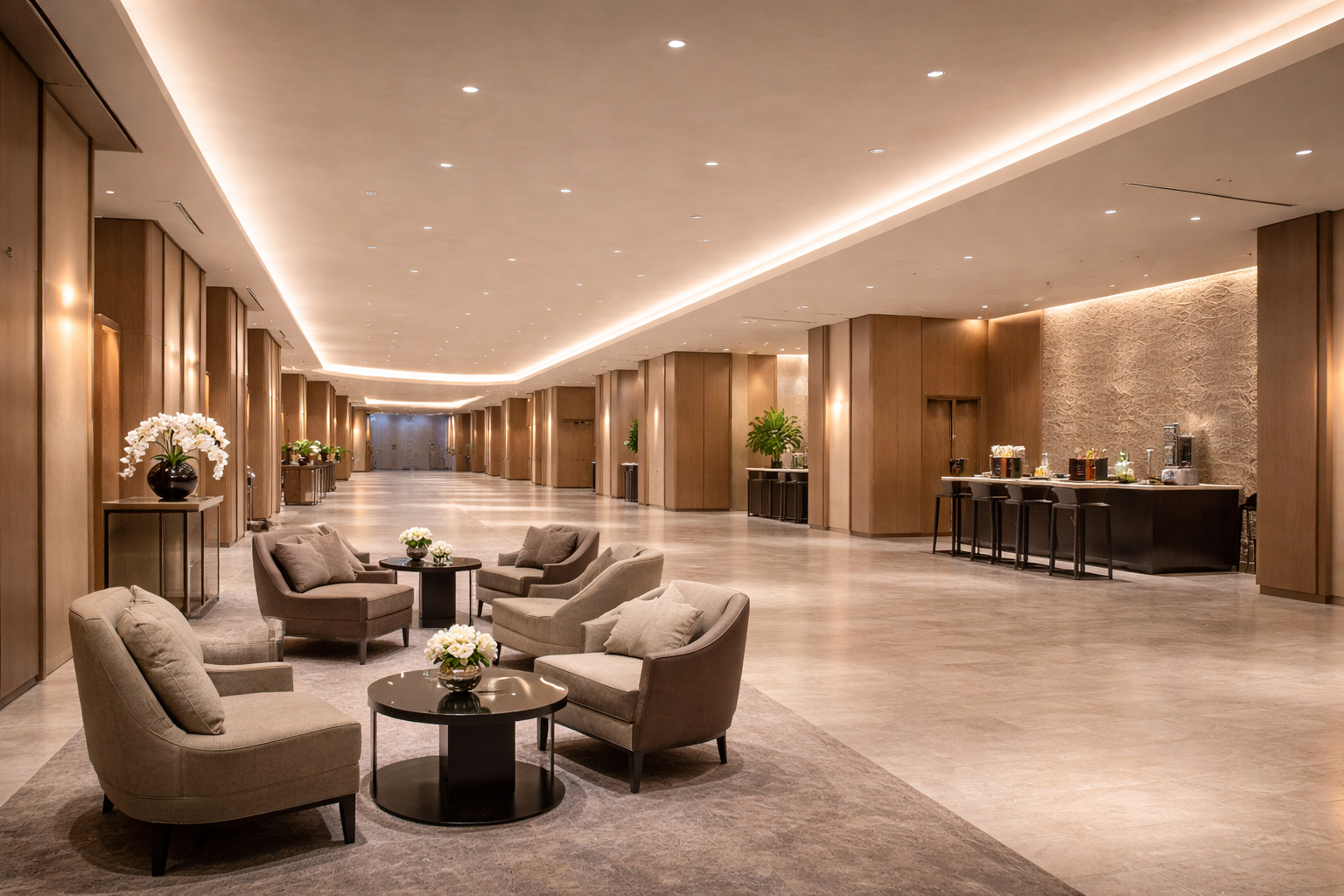

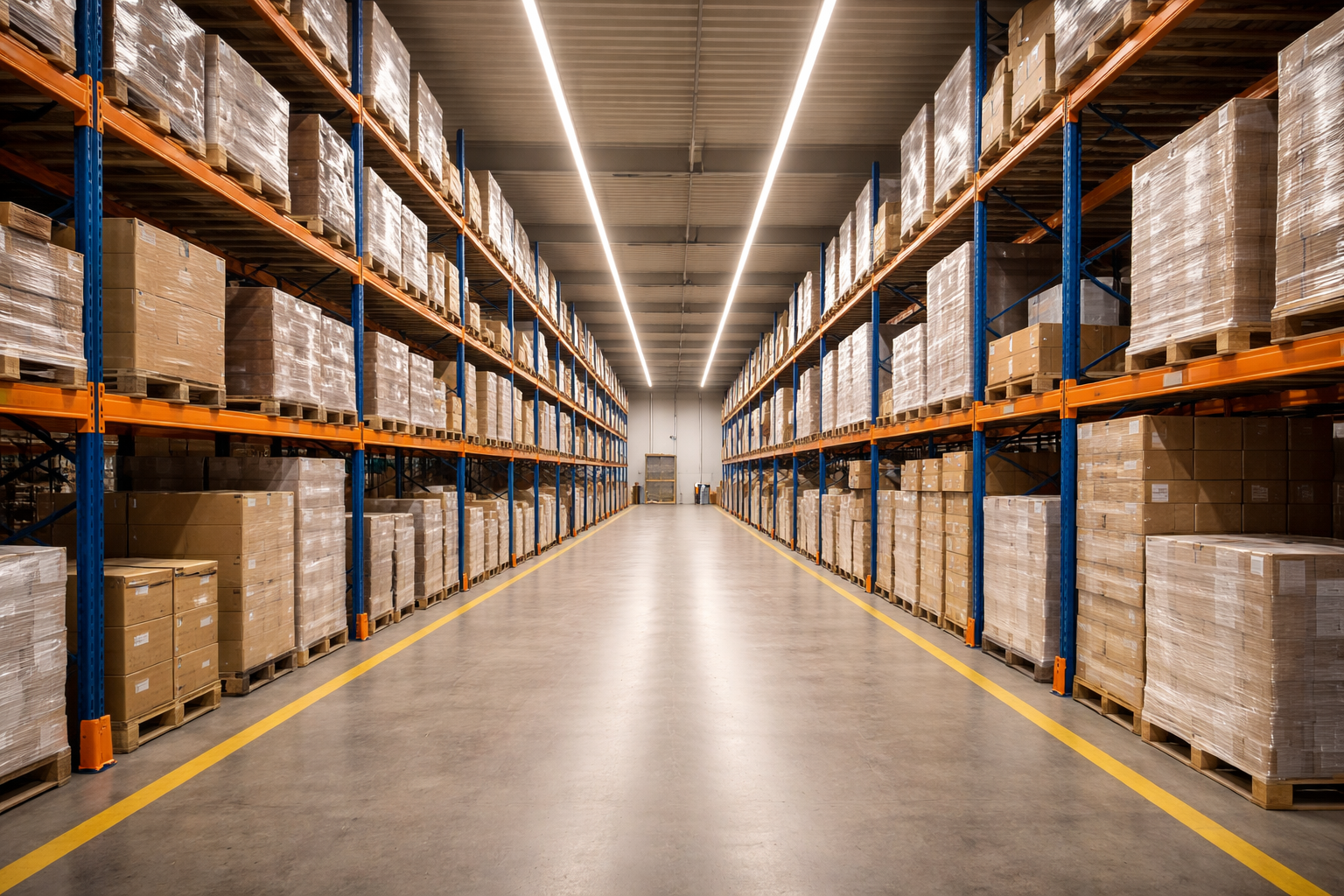

Ideal for project-grade linear lighting, including commercial coves, public corridor lines, showroom perimeter lighting, and architectural channels where higher power and stable performance are required.
