Standard-Density COB

LUMSET® COB Strip | Double-Row | 960 LEDs/m | 24V | CRI90+

  • Voltage
    DC 24 V
  • Cutting Interval
    33.3 mm (24 V)
  • Power
    28 W/m
  • PCB Width
    12 mm
Ask about this product

Intro description


− +

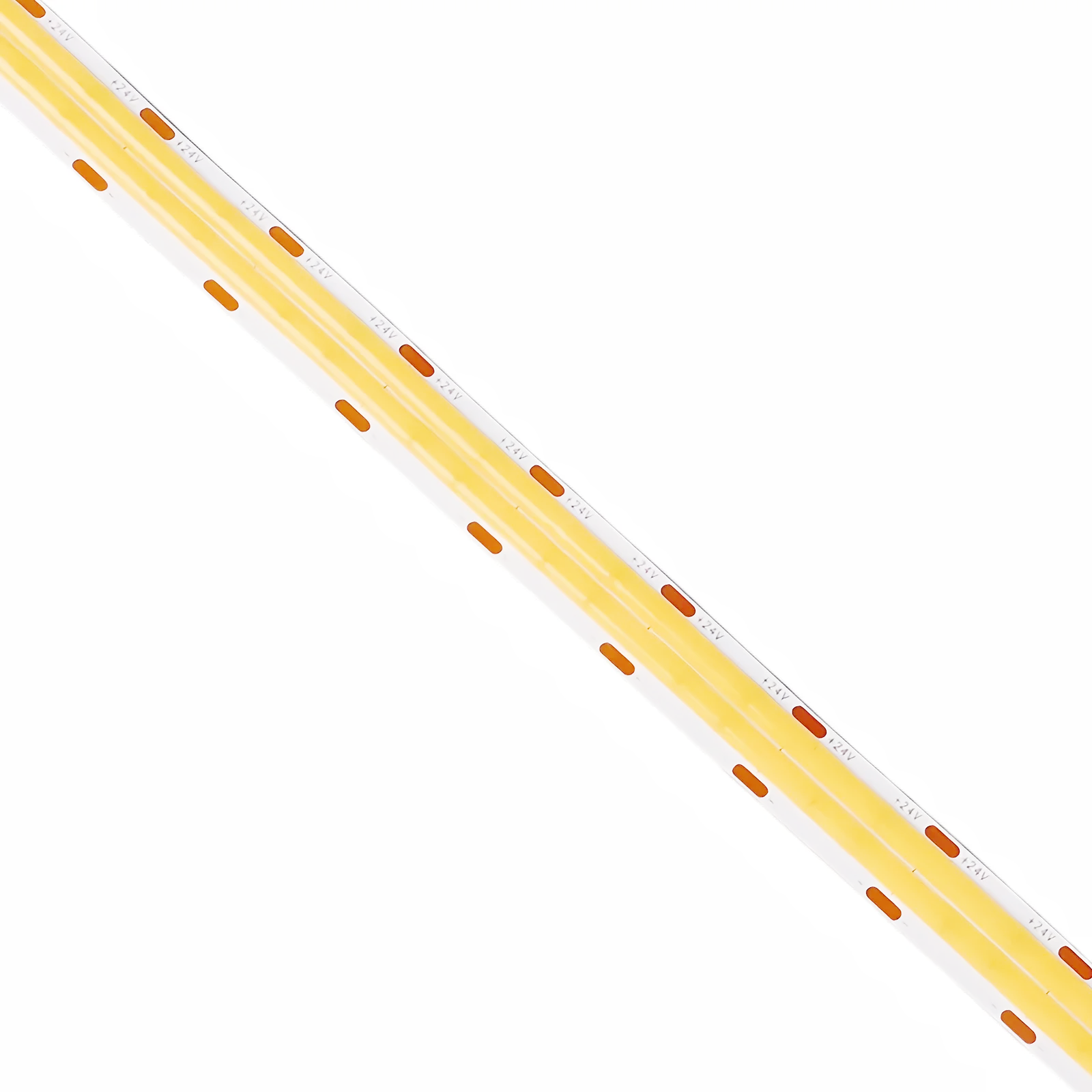

LUMSET® COB Strip | Double-Row | 960 LEDs/m | 24V | CRI90+ (Model: LS-COB-DR-960-12MM-24V-28W-C333-PB)
Common specs: LED Tech: COB Structure: Double-Row LED Density: 960 LEDs/m Voltage: 24V PCB Width: 12mm Power: 28W/m CRI (Ra): > 90 Cut: 33.33mm (C333) Supply: PB SDCM: < 3 IP: IP20 Encapsulation: Bare PCB
Variant Voltage PCB Width Power (W/m) CCT / Color Cutting Interval IP Encapsulation
COB · Double-Row · 960 LEDs/m · 12mm · 24V · PB · SDCM < 3 · C333 · 2700K 24V 12 mm 28 W/m 2700K 33.33 mm IP20 Bare PCB
COB · Double-Row · 960 LEDs/m · 12mm · 24V · PB · SDCM < 3 · C333 · 3000K 24V 12 mm 28 W/m 3000K 33.33 mm IP20 Bare PCB
COB · Double-Row · 960 LEDs/m · 12mm · 24V · PB · SDCM < 3 · C333 · 4000K 24V 12 mm 28 W/m 4000K 33.33 mm IP20 Bare PCB
COB · Double-Row · 960 LEDs/m · 12mm · 24V · PB · SDCM < 3 · C333 · 6500K 24V 12 mm 28 W/m 6500K 33.33 mm IP20 Bare PCB
Tip: Please add to cart based on the specifications in the table.
Supply codes: NP = Roll-to-Roll (non-panelized continuous roll); PB = Panelized (spliced board segments).


Technical Specifications

Model / SKU Code
LS-COB-DR-960-12MM-24V-28W-C333-PB
Brand
LUMSET
Product Form
LED Strip
FPCB
Panelized
Current Type
Constant Voltage
Max Run Length (m)
5
LED Density (LEDs/m)
960
Structure
Double Row
Adhesive
3M
Roll Length
5m
Warranty
2 Years
Certifications
  • CE
  • RoHS

Recent products

Frequently Asked Questions

Why choose 960 LEDs/m double-row COB?
It delivers a smoother light line and higher output for projects that require bright, uniform linear illumination.
What is the cutting interval?
This 24V version is cuttable every 33.33 mm (C333). Always cut only at the marked cut points.
Which color temperatures are available?
This series supports 2700K / 3000K / 4000K / 6500K.
See All FAQ

Downloads

  • Optical Test Report
  • Datasheet
  • Manual

Application

Ideal for high-end commercial coves, hotel lobbies, showroom perimeter lines, and retail feature lighting where a high-output, dot-free COB line is required.
