Standard-Density COB

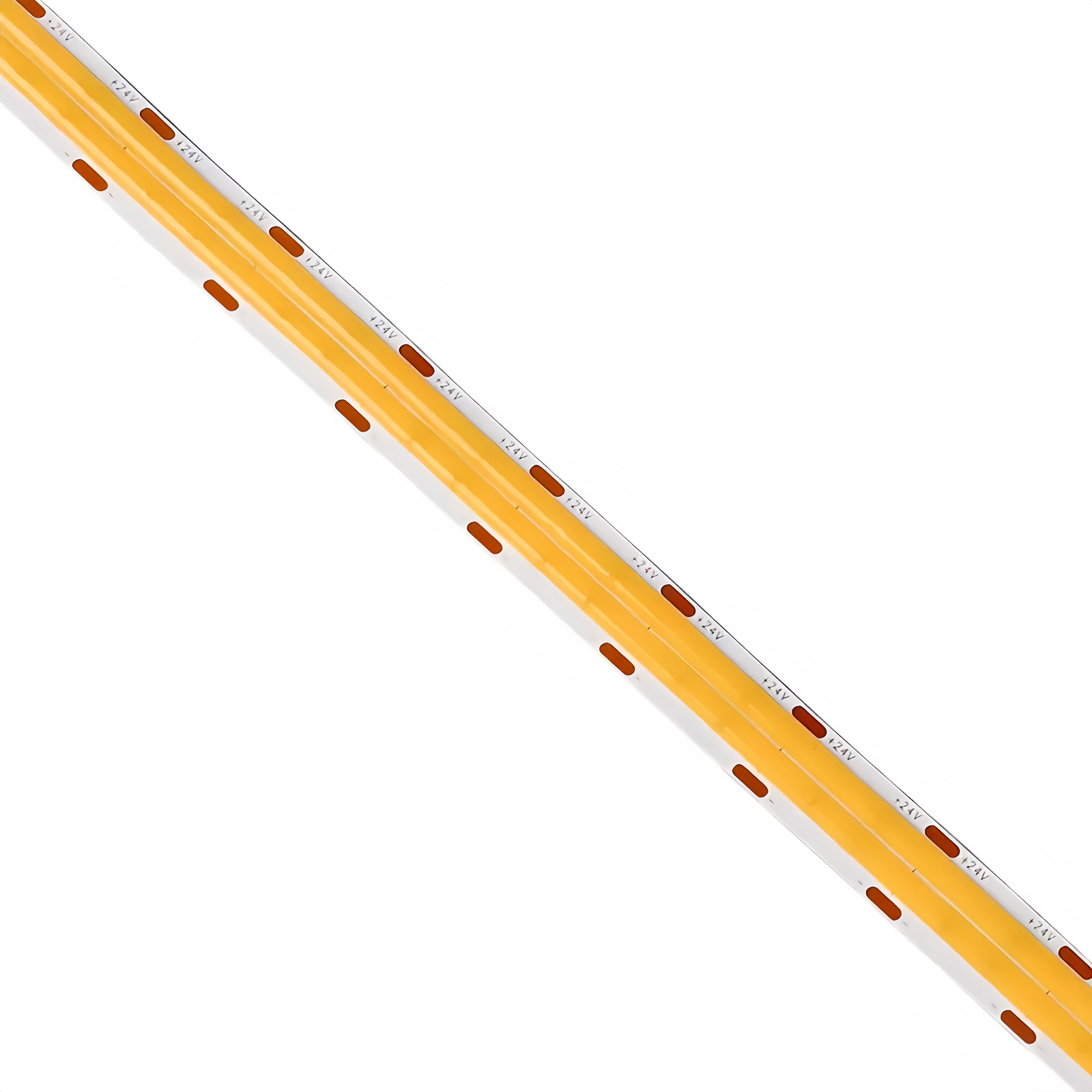

LUMSET® COB Strip | Double-Row | 600 LEDs/m | 24V | CRI90+

  • Voltage
    DC 24 V
  • Cutting Interval
    20 mm (24 V)
  • Power
    24 W/m
  • PCB Width
    12 mm
Ask about this product

Intro description


− +
LUMSET® COB Strip | Double-Row | 600 LEDs/m | 24V | CRI90+ (Model: LS-COB-DR-600-12MM-24V-24W-C200-PB)
Common specs: LED Tech: COB Structure: Double-Row LED Density: 600 LEDs/m Voltage: 24V PCB Width: 12mm Power: 24W/m CRI (Ra): > 90 Cut: 20mm (C200) Supply: PB SDCM: < 3 IP: IP20 Encapsulation: Bare PCB
Variant Voltage PCB Width Power (W/m) CCT / Color Cutting Interval IP Encapsulation
COB · Double-Row · 600 LEDs/m · 12mm · 24V · PB · SDCM < 3 · C200 · 2700K 24V 12 mm 24 W/m 2700K 20 mm IP20 Bare PCB
COB · Double-Row · 600 LEDs/m · 12mm · 24V · PB · SDCM < 3 · C200 · 3000K 24V 12 mm 24 W/m 3000K 20 mm IP20 Bare PCB
COB · Double-Row · 600 LEDs/m · 12mm · 24V · PB · SDCM < 3 · C200 · 4000K 24V 12 mm 24 W/m 4000K 20 mm IP20 Bare PCB
COB · Double-Row · 600 LEDs/m · 12mm · 24V · PB · SDCM < 3 · C200 · 6500K 24V 12 mm 24 W/m 6500K 20 mm IP20 Bare PCB
Tip: Please add to cart based on the specifications in the table.
Supply codes: NP = Roll-to-Roll (non-panelized continuous roll); PB = Panelized (spliced board segments).


Technical Specifications

Model / SKU Code
LS-COB-DR-600-12MM-24V-24W-C200-PB
Brand
LUMSET
Product Form
LED Strip
FPCB
Panelized
Current Type
Constant Voltage
Max Run Length (m)
5
LED Density (LEDs/m)
600
Structure
Double Row
Adhesive
3M
Roll Length
5m
Warranty
2 Years
Certifications
  • CE
  • RoHS

Recent products

Frequently Asked Questions

What does “double-row COB” mean?
It uses a double-row COB structure to deliver higher brightness and a smoother light line for demanding projects.
What is the cutting interval?
This 24V version is cuttable every 20 mm (C200). Always cut only at the marked cut points.
Which color temperatures are available?
This series supports 2700K / 3000K / 4000K / 6500K, covering warm white to cool white.
See All FAQ

Downloads

  • Optical Test Report
  • Datasheet
  • Manual

Application

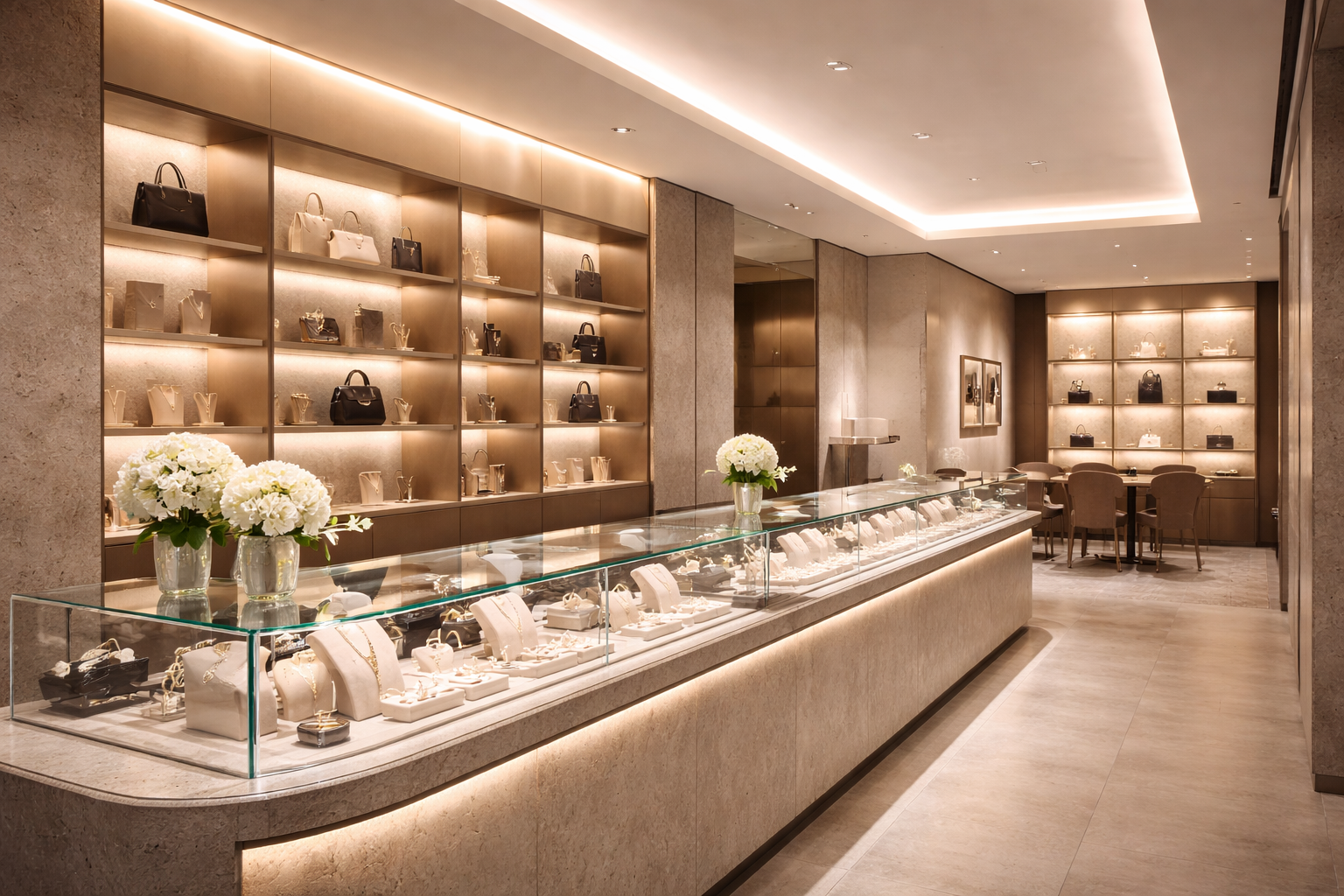

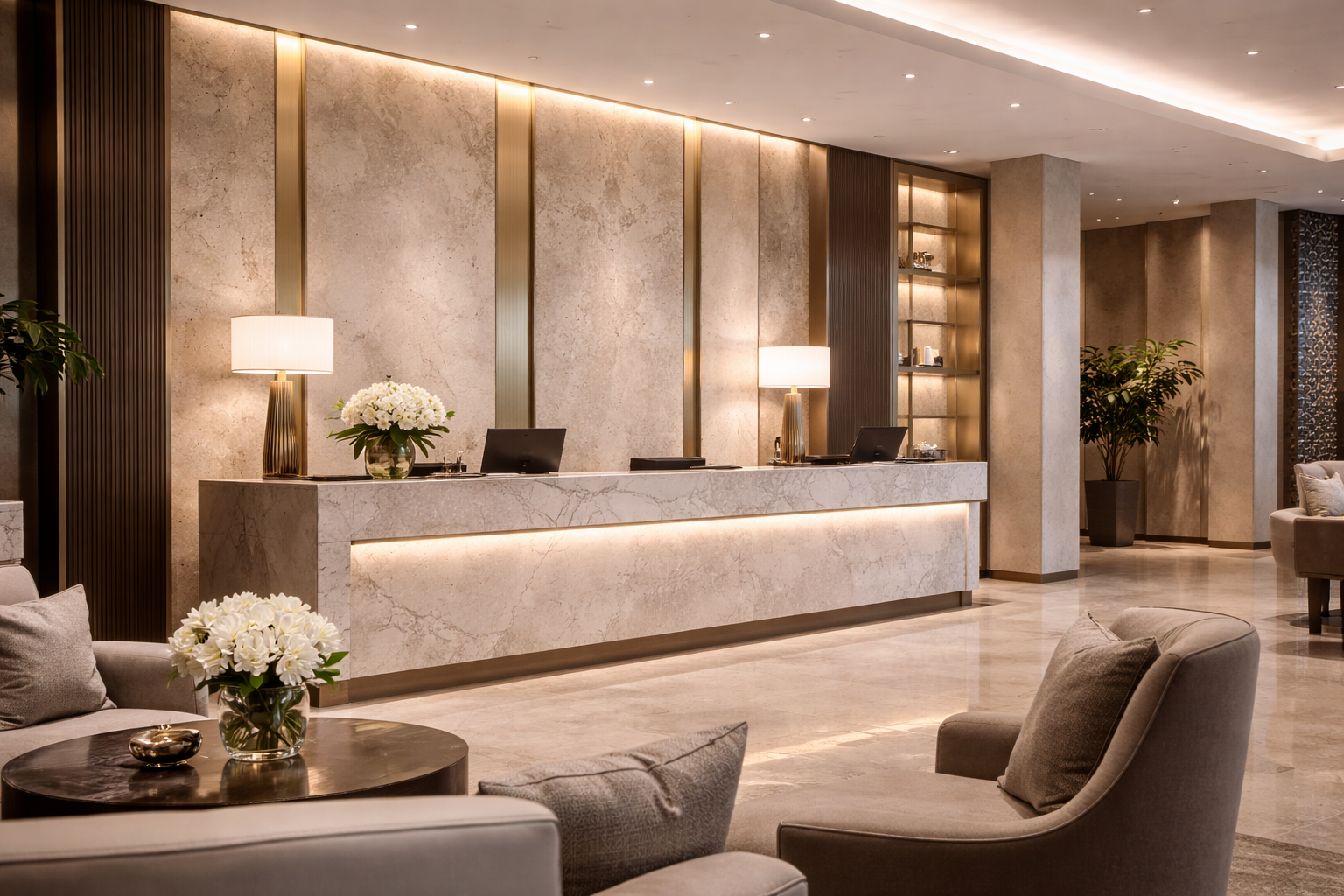

Ideal for high-output architectural coves, commercial counters, showroom lines, and other projects where you need a clean, dot-free light line with higher brightness. The 24V platform and 20mm cut interval make it efficient for professional installations.
