Free-Cut COB Strip

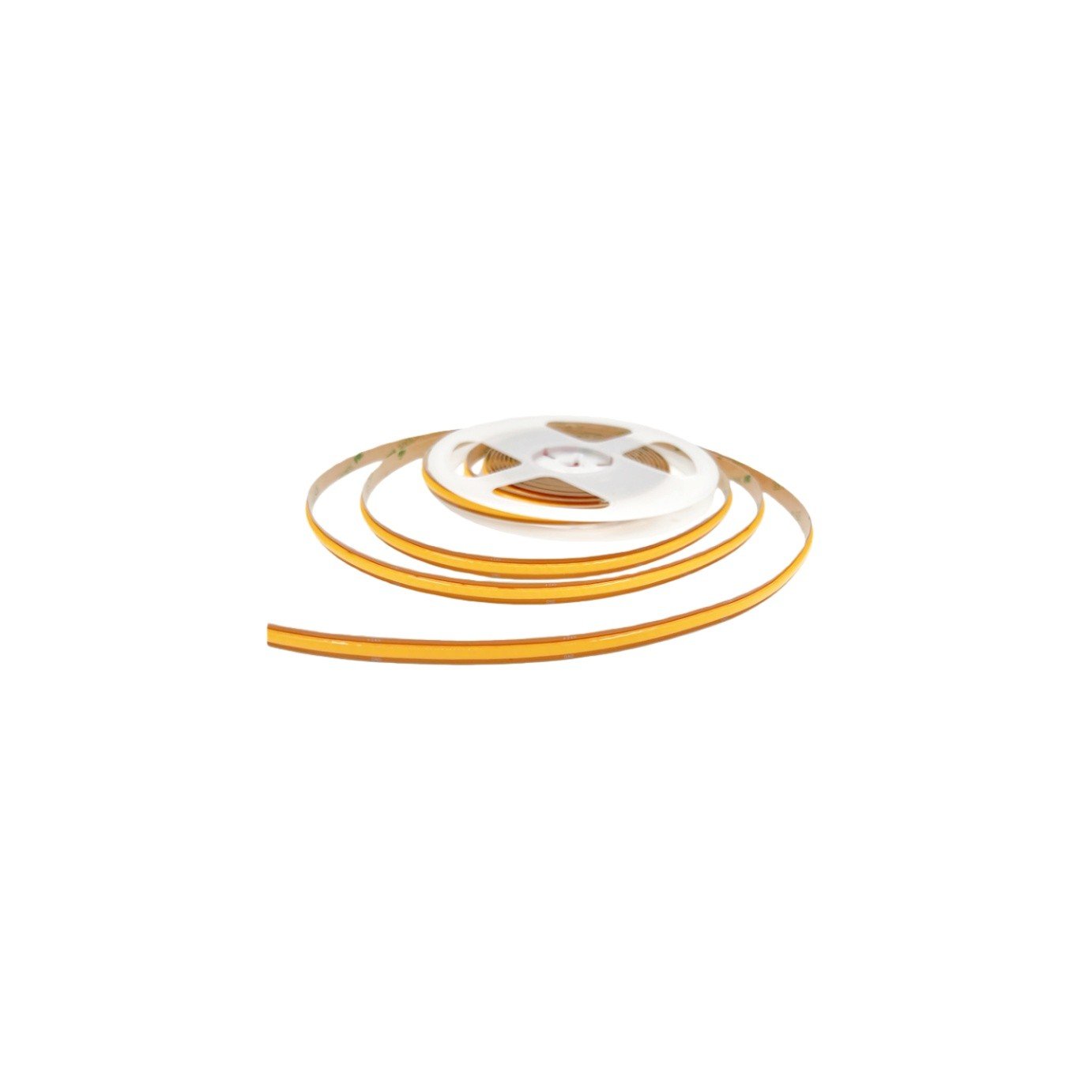

LUMSET® COB Strip | 528 LEDs/m | CRI90+ | Free-Cut

  • Voltage
    DC 12 V / DC 24 V
  • Cutting Interval
    0 mm (12/24 V)
  • Power
    13 W/m
  • PCB Width
    8 mm
Ask about this product

Intro description


− +
LUMSET® COB Strip · 528 LEDs/m · CRI90+ · 8mm · Free-Cut Variants
Common specs: LED Tech: COB LED Density: 528 LEDs/m CRI (Ra): > 90 PCB Width: 8mm Power: 13W/m CCT: 2700/3000/4000/6500K IP: IP20 Encapsulation: Bare PCB
Variant Voltage PCB Width Power (W/m) CCT / Color Cutting Interval IP Encapsulation
COB · 528 LEDs/m · 8mm · 12V · NP · SDCM < 5 · FC 12V 8 mm 13 W/m 2700K / 3000K / 4000K / 6500K Free-Cut IP20 Bare PCB
COB · 528 LEDs/m · 8mm · 24V · NP · SDCM < 5 · FC 24V 8 mm 13 W/m 2700K / 3000K / 4000K / 6500K Free-Cut IP20 Bare PCB
COB · 528 LEDs/m · 8mm · 12V · PB · SDCM < 3 · FC 12V 8 mm 13 W/m 2700K / 3000K / 4000K / 6500K Free-Cut IP20 Bare PCB
COB · 528 LEDs/m · 8mm · 24V · PB · SDCM < 3 · FC 24V 8 mm 13 W/m 2700K / 3000K / 4000K / 6500K Free-Cut IP20 Bare PCB
Tip: Please add to cart based on the specifications in the table.
Supply codes: NP = Roll-to-Roll (non-panelized continuous roll); PB = Panelized (spliced board segments).


Technical Specifications

Model / SKU Code
LS-COB-528-FC-CRI90
Brand
LUMSET
Product Form
LED Strip
Current Type
Constant Voltage
Max Run Length (m)
5
LED Density (LEDs/m)
528
Structure
Single Row
Adhesive
3M
Roll Length
5m
Warranty
2 Years
Certifications
  • CE
  • RoHS

Recent products

Frequently Asked Questions

What does “Free-Cut (FC)” mean for this COB strip?
Free-Cut means the strip can be cut flexibly to fit your installation length. Always follow the cutting guidance provided with the product and ensure proper re-connection after cutting.
What’s the difference between NP and PB supply types?
NP is roll-to-roll (non-panelized) continuous strip, listed as SDCM < 5. PB is panelized spliced boards, listed as SDCM < 3 for tighter color consistency and easier segment handling in project workflows.
Which color temperatures are available?
This series supports 2700K / 3000K / 4000K / 6500K, allowing you to choose from warm white to cool white for different lighting environments.
See All FAQ

Downloads

  • Optical Test Report
  • Datasheet
  • Manual

Application

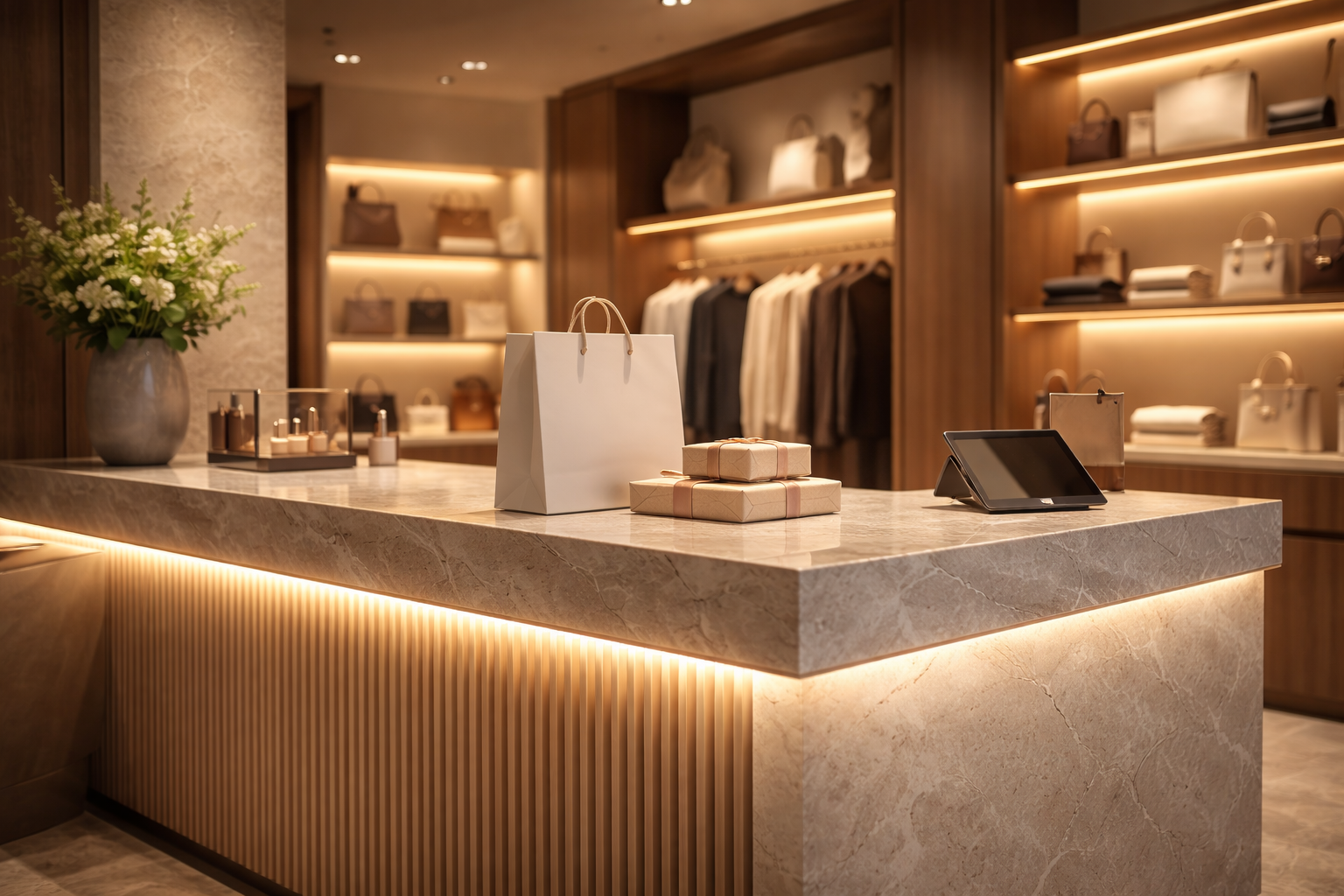

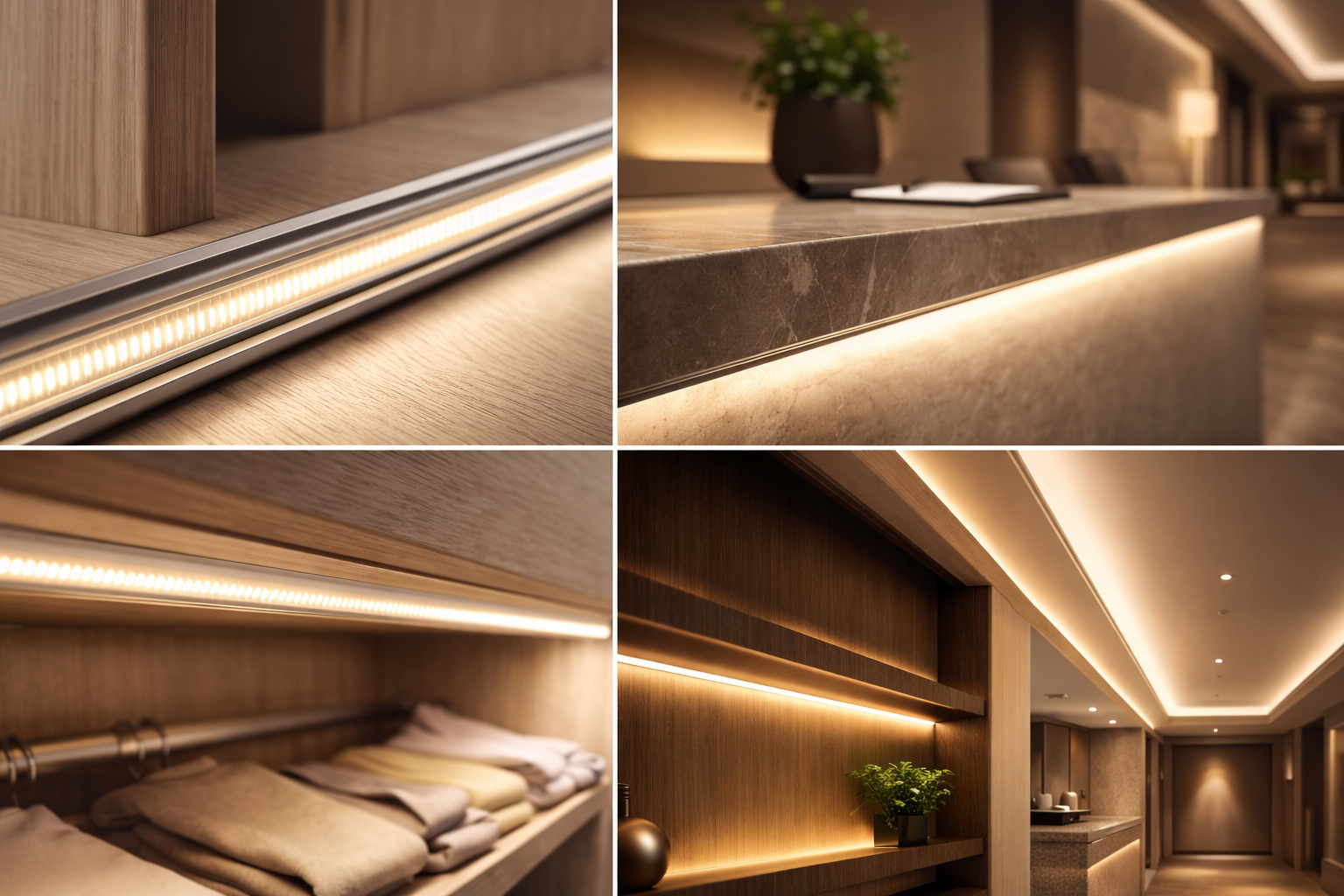

The LUMSET® COB Strip (528 LEDs/m, 8mm, CRI90+, Free-Cut) is ideal for premium, dot-free linear lighting where installers need flexible length adjustment on site. It works well for hotel joinery and millwork, retail shelves and display cases, cove lighting, reception and corridor accents, and custom interior details that require a clean, continuous light line. With 2700K–6500K options, it supports both warm ambient scenes and crisp functional lighting. Choose NP (roll-to-roll) for standard continuous installations, or PB (panelized) when spliced-board handling and tighter color consistency (SDCM < 3) are preferred for project workflows.
