COB RGBW Strip

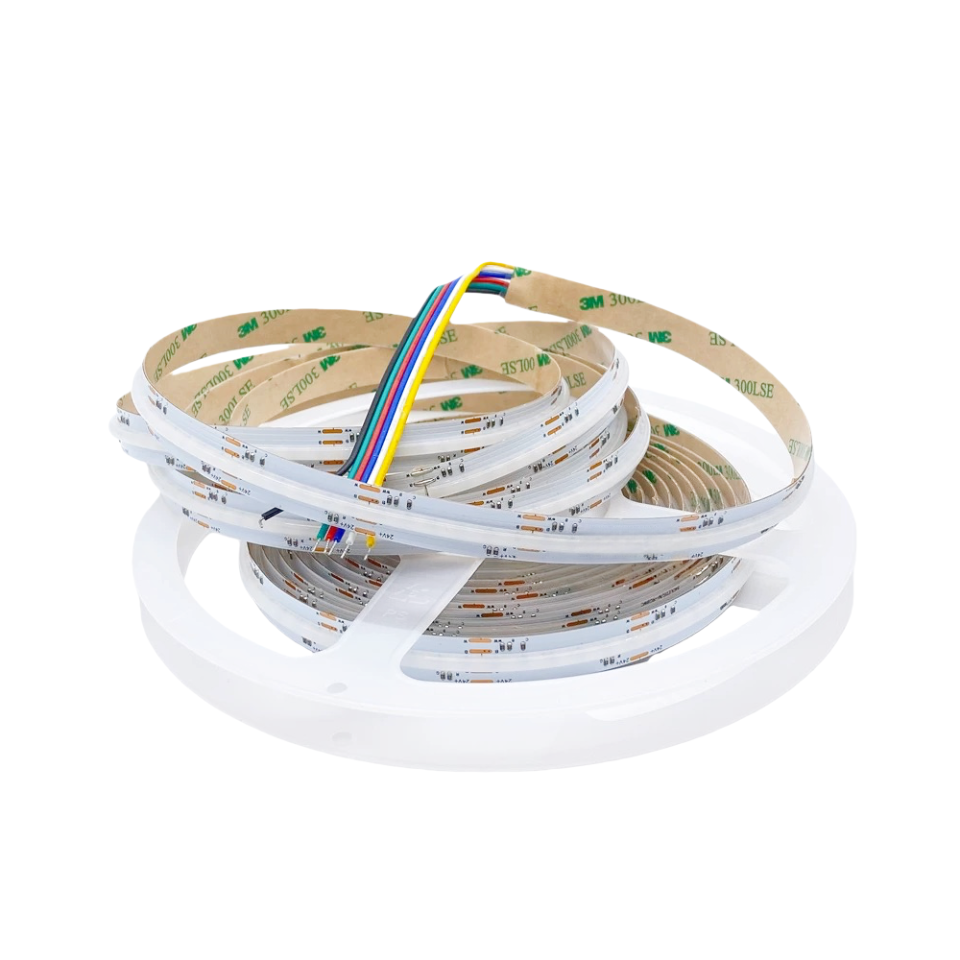

LUMSET® COB RGBW Strip | 12mm | High-Density

  • Voltage
    DC 12 V / DC 24 V
  • Cutting Interval

    RGBW 784 LEDs/m | 24V Cut 71.42mm

    RGBW 896 LEDs/m | 12/24V Cut 62.5mm

    RGBCW 840 LEDs/m | 24V Cut 35.71mm

  • Power
    19/21 W/m
  • PCB Width
    12 mm
Ask about this product

Intro description


− +
LUMSET® COB RGBW Strip | 12mm | High-Density | 12V/24V (RGBW/RGBCW Variants)
Common specs: LED Tech: COB PCB Width: 12mm Supply: PB IP: IP20 Encapsulation: Bare PCB
Variant Voltage PCB Width Power (W/m) CCT / Color Cutting Interval IP Encapsulation
COB · RGBW · 784 LEDs/m · 12mm · 24V · PB · C714 · White: 2700K/3000K/4000K/6500K 24V 12 mm 19 W/m RGB + White Options 71.42 mm IP20 Bare PCB
COB · RGBW · 896 LEDs/m · 12mm · 12V · PB · C625 · White: 2700K/3000K/4000K/6500K 12V 12 mm 19 W/m RGB + White Options 62.5 mm IP20 Bare PCB
COB · RGBW · 896 LEDs/m · 12mm · 24V · PB · C625 · White: 2700K/3000K/4000K/6500K 24V 12 mm 19 W/m RGB + White Options 62.5 mm IP20 Bare PCB
COB · RGBCW · 840 LEDs/m · 12mm · 24V · PB · C357 · Warm/Cool White 24V 12 mm 21 W/m RGBCW 35.71 mm IP20 Bare PCB
Tip: Please add to cart based on the specifications in the table.
Supply codes: NP = Roll-to-Roll (non-panelized continuous roll); PB = Panelized (spliced board segments).


Technical Specifications

Model / SKU Code
LS-COB-COLOR-12MM-PB
Brand
LUMSET
Product Form
LED Strip
FPCB
Panelized
Current Type
Constant Voltage
Max Run Length (m)
5
Structure
Single Row
Adhesive
3M
Roll Length
5m
Warranty
2 Years
Certifications
  • CE
  • RoHS

Recent products

Frequently Asked Questions

What’s the difference between RGBW and RGBCW?

RGBW uses RGB + a single White channel (with selectable white options). RGBCW uses RGB + Warm White + Cool White for tunable white mixing.

Why are there both 12V and 24V options for 896 LEDs/m?
They support different power systems and installation preferences. 24V is usually preferred for longer runs and reduced current, while 12V suits shorter runs or specific controllers.
Which white colors are available on RGBW versions?
RGBW versions support 2700K / 3000K / 4000K / 6500K as selectable white options.
See All FAQ

Downloads

  • Optical Test Report
  • Datasheet
  • Manual

Application

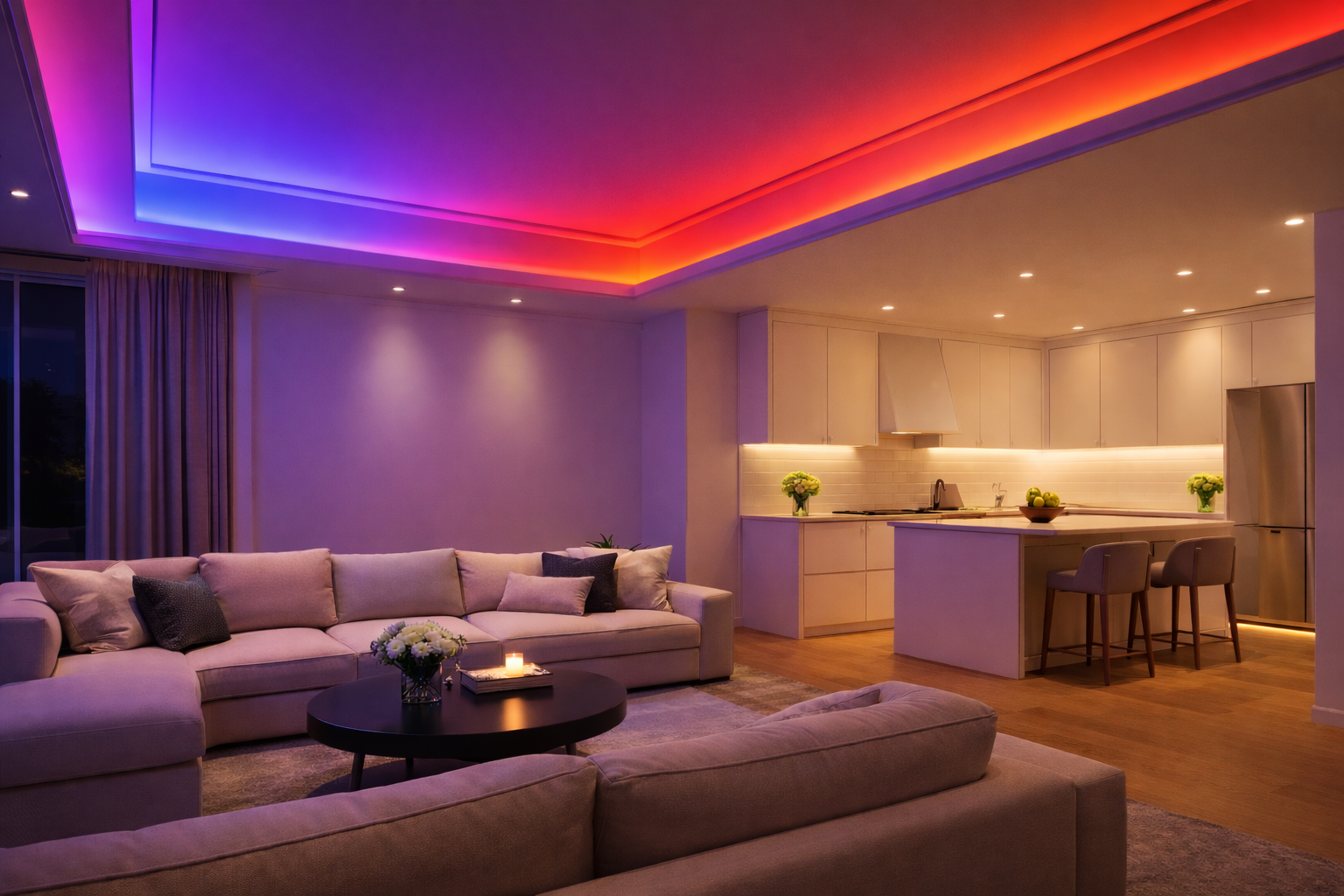

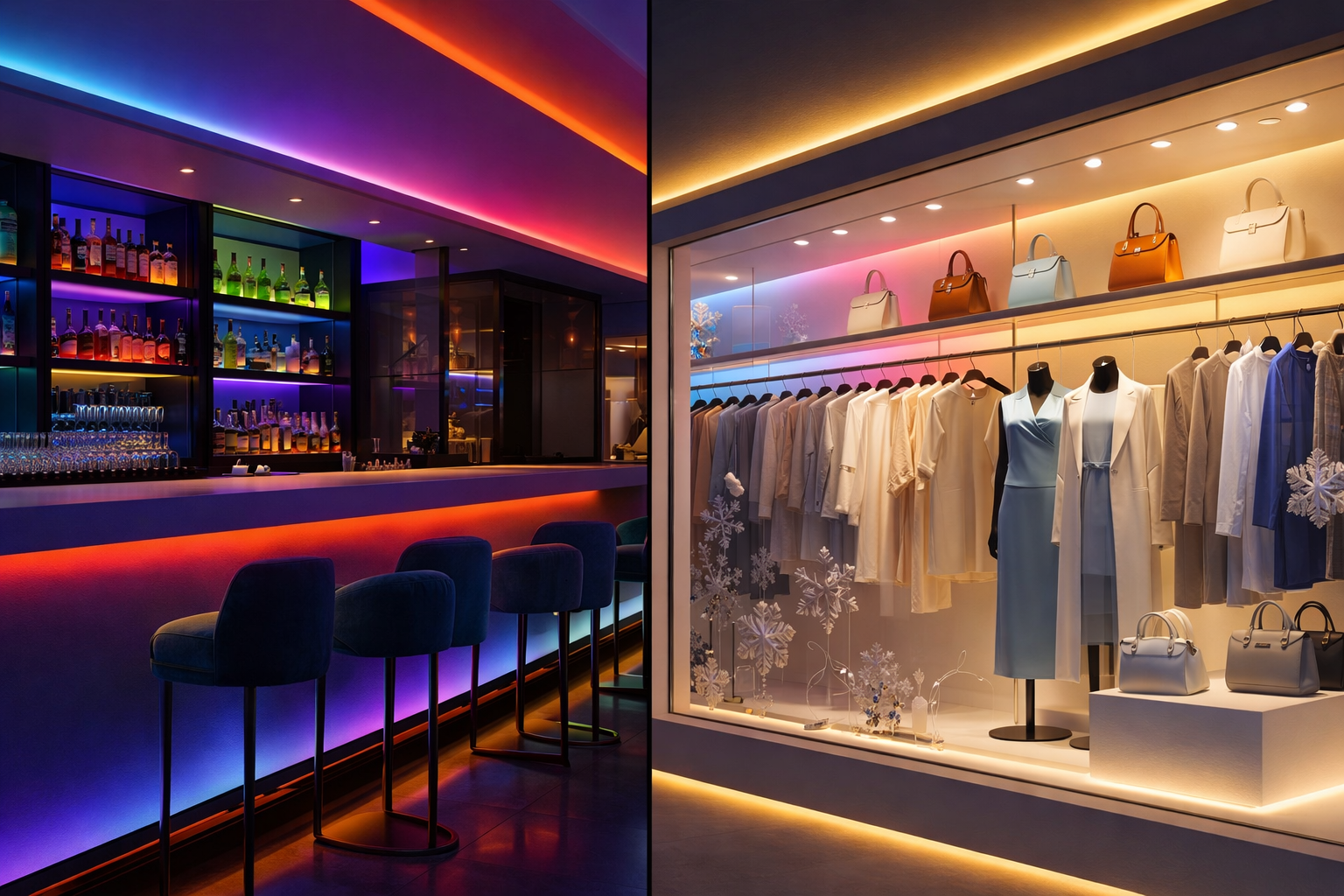

Ideal for architectural accent lighting, retail displays, bars and entertainment venues, and hotel/public spaces where you need both vibrant color effects and practical white lighting (RGBW) or tunable white mixing (RGBCW).
