Dual CCT 2700K–6500K,

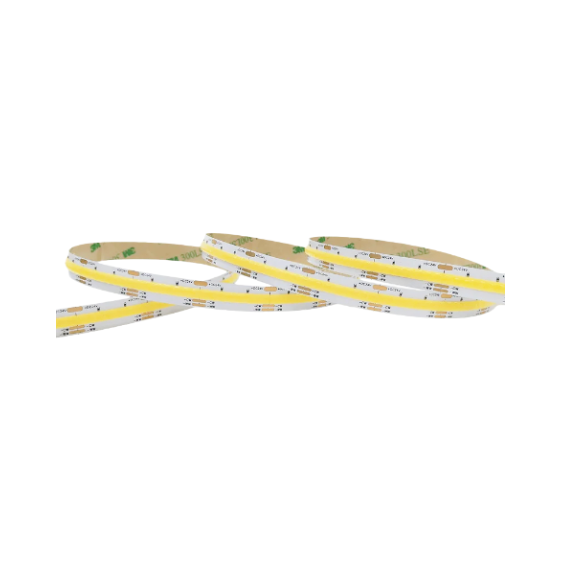

LUMSET® COB Dual CCT Strip | 3-Wire | 640 LEDs/m | CRI90+ | PB

  • Voltage
    DC 5 V / DC 24 V
  • Cutting Interval
    25 mm (24 V) / 12.5 mm (5 V)
  • Power
    8+8 (Max 16) or 5+5 (Max 10) (Dual CCT)
  • PCB Width
    10 mm
Ask about this product

Intro description


− +
LUMSET® COB Dual CCT Strip · 3-Wire · 640 LEDs/m · CRI90+ · PB Variants
Common specs: LED Tech: COB LED Density: 640 LEDs/m Wiring: 3-Wire Dual CCT PCB Width: 10mm CRI (Ra): > 90 CCT Code: 2765 IP: IP20 Encapsulation: Bare PCB
Variant Voltage PCB Width Power (W/m) CCT / Color Cutting Interval IP Encapsulation
COB · Dual CCT · 3-Wire · 640 LEDs/m · 10mm · 24V · PB · SDCM < 3 · C250 · 2765 24V 10 mm 8 + 8 W/m Tunable White (2700K–6500K) 25 mm IP20 Bare PCB
COB · Dual CCT · 3-Wire · 640 LEDs/m · 10mm · 5V · PB · SDCM < 3 · C125 · 2765 5V 10 mm 5 + 5 W/m Tunable White (2700K–6500K) 12.5 mm IP20 Bare PCB
Tip: Please add to cart based on the specifications in the table.
Supply codes: NP = Roll-to-Roll (non-panelized continuous roll); PB = Panelized (spliced board segments).
CCT code: 2765 = Tunable White 2700K–6500K.


Technical Specifications

Model / SKU Code
LS-COB-CCT3W-640
Brand
LUMSET
Product Form
LED Strip
FPCB
Panelized
Current Type
Constant Voltage
Max Run Length (m)
5
LED Density (LEDs/m)
640
Structure
Dual-CCT 3-wire
Adhesive
3M
Roll Length
5m
Warranty
2 Years
Certifications
  • CE
  • RoHS

Recent products

Frequently Asked Questions

How do I control the 3-wire Dual CCT function?
Use a compatible 3-wire Dual CCT controller/dimmer to adjust brightness and smoothly shift CCT from 2700K to 6500K.
What’s the difference between the 24V and 5V versions?
They share the same 10mm PCB and CCT range, but differ in power and cutting interval: 24V is 8+8W/m with 25mm cuts, while 5V is 5+5W/m with 12.5mm cuts.
What do C250 and C125 mean?
They are cut codes: C250 = 25mm cutting interval, and C125 = 12.5mm cutting interval. Always cut only at the marked cut points.
See All FAQ

Downloads

  • Optical Test Report
  • Datasheet
  • Manual

Application

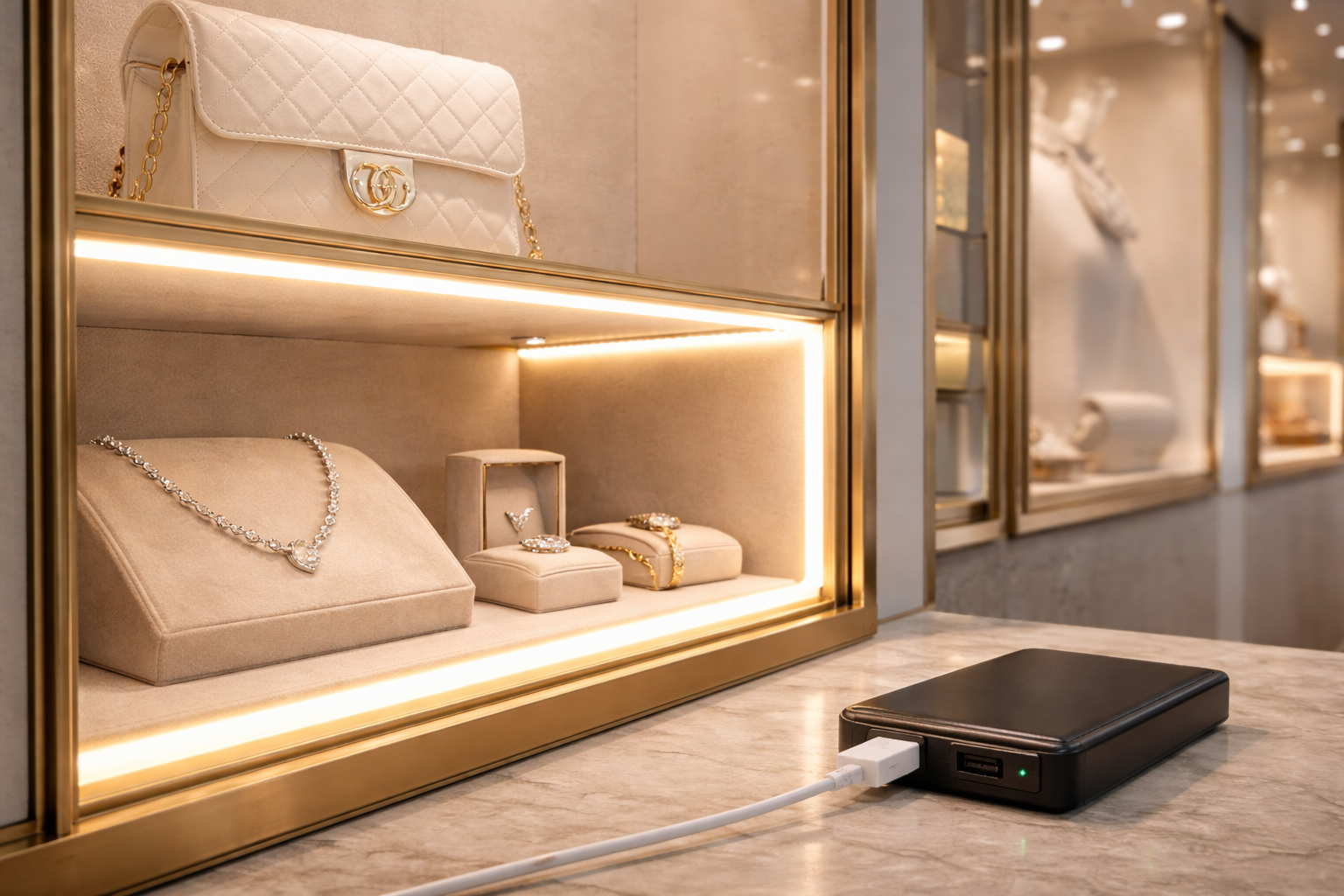

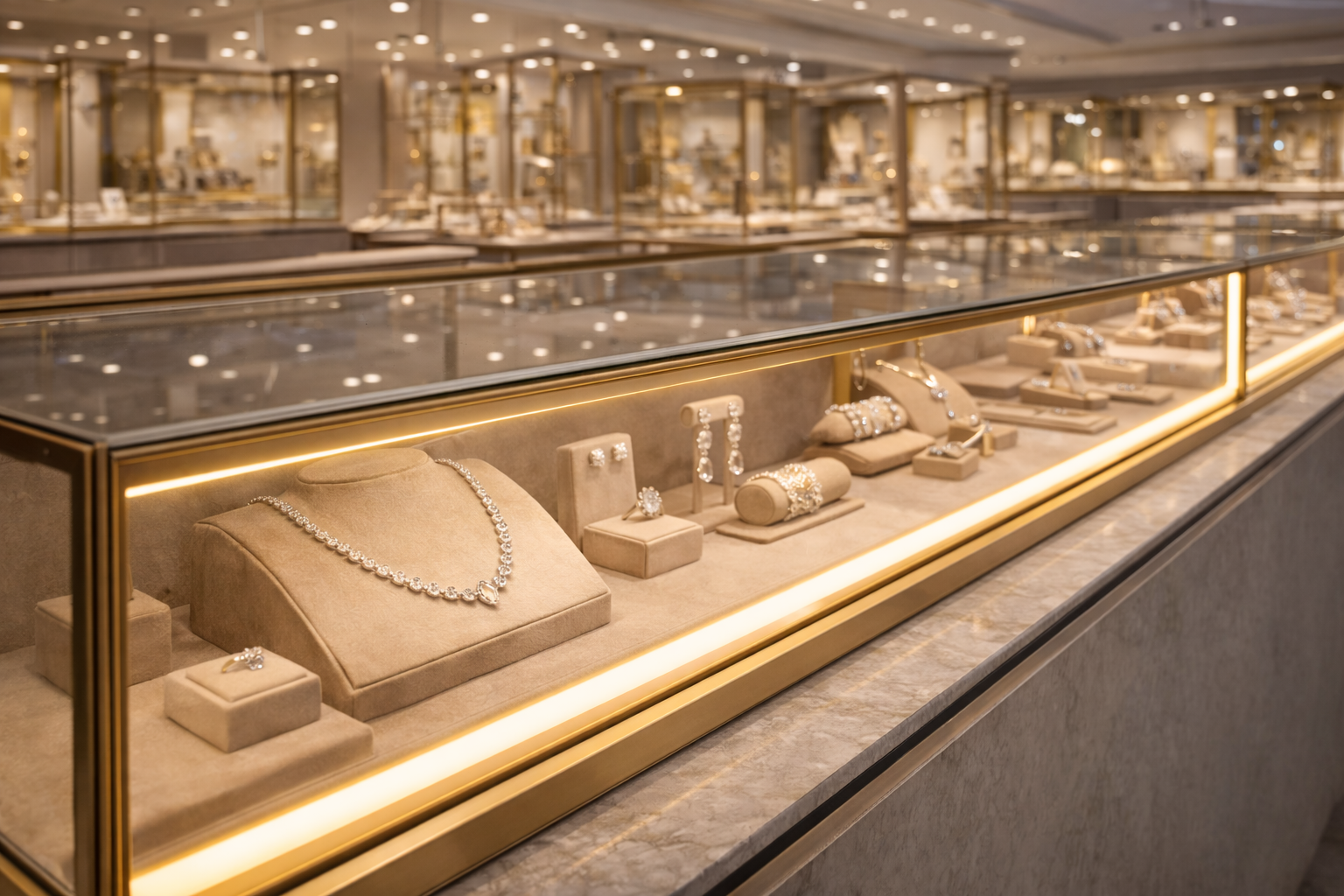

Ideal for architectural cove lighting, hotel and retail perimeter lines, feature walls, and joinery channels where you want a premium dot-free COB light line with tunable white (2700K–6500K). The 24V version suits longer runs and higher output needs, while the 5V version is great for compact installations requiring finer cutting increments.
