Under-Cabinet COB Strip

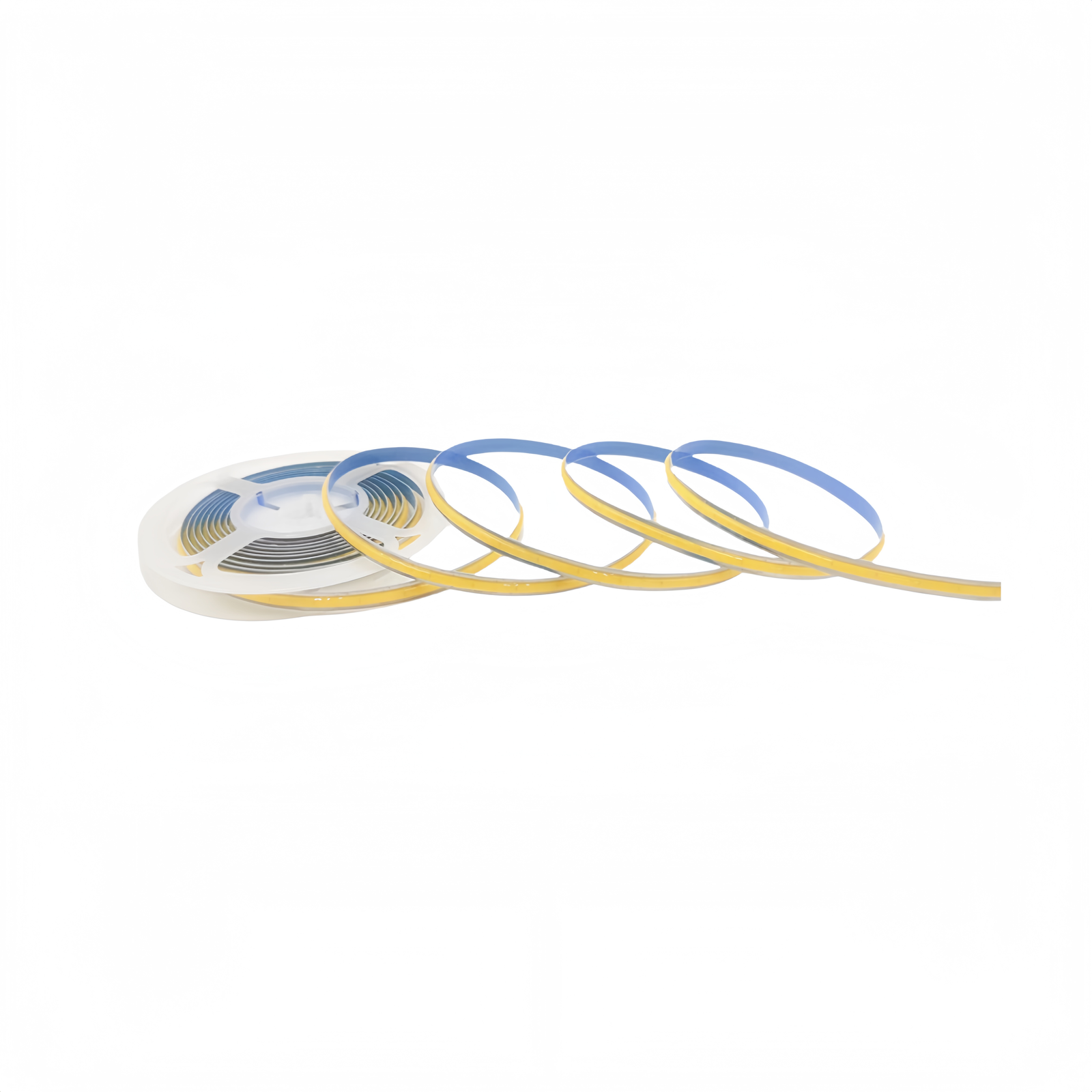

LUMSET® COB Dual CCT Strip | 2-Wire | 480 LEDs/m | 12V | 6.6mm | CRI90+ | Under-Cabinet

  • Voltage
    DC 12 V / DC 24 V
  • Cutting Interval
    13.1 mm (12 V) / 26.3 mm (24 V)
  • Power
    6+6 (Max 12) or 7+7 (Max 14) (Dual CCT)
  • PCB Width
    5 mm, 8 mm, 10 mm
Ask about this product

Intro description


− +
LUMSET® COB Dual CCT Strip | 2-Wire | 480 LEDs/m | 12V | 6.6mm | CRI90+ (Model: LS-COB-CCT2W-480-6P6-12V)
Common specs: LED Tech: COB LED Density: 480 LEDs/m Wiring: 2-Wire Dual CCT Voltage: 12V PCB Width: 6.6mm Power: 7+7 W/m (14W/m) CRI (Ra): > 90 CCT: 2700K–6500K (2765) Cut: 12.5mm (C125) Conductor: Tinned Copper Install: Solderless IP: IP20 Encapsulation: Bare PCB
Variant Voltage PCB Width Power (W/m) CCT / Color Cutting Interval IP Encapsulation
SKU: LS-COB-CCT2W-480-6P6-12V-14W-C125-NP-2765 · Dual CCT · 2-Wire · 480 LEDs/m · 6.6mm · 12V · NP · SDCM < 5 · C125 · 2765 · Tinned Copper · Solderless 12V 6.6 mm 7 + 7 W/m Tunable White (2700K–6500K) 12.5 mm IP20 Bare PCB
Tip: Please add to cart based on the specifications in the table.
Supply codes: NP = Roll-to-Roll (non-panelized continuous roll); PB = Panelized (spliced board segments).


Technical Specifications

Model / SKU Code
LS-COB-CCT2W-480-6P6-12V
Brand
LUMSET
Product Form
LED Strip
FPCB
Non-Panelized
Current Type
Constant Voltage
Max Run Length (m)
5
LED Density (LEDs/m)
480
Structure
Single Row
Adhesive
Standard Adhesive
Roll Length
5m
Warranty
2 Years
Certifications
  • CE
  • RoHS

Recent products

Frequently Asked Questions

What does “tinned copper + solderless” mean?
It uses tinned copper conductors for better corrosion resistance, and supports solderless connector installation for faster, cleaner setup.
What is the cutting interval?
This 12V version is cuttable every 12.5 mm (C125). Always cut only at the marked cut points.
Is it suitable for under-cabinet lighting?
Yes. The 6.6mm slim width fits narrow channels, and the COB output provides a smooth, dot-free line for cabinets and countertops.
See All FAQ

Downloads

  • Optical Test Report
  • Datasheet
  • Manual

Application

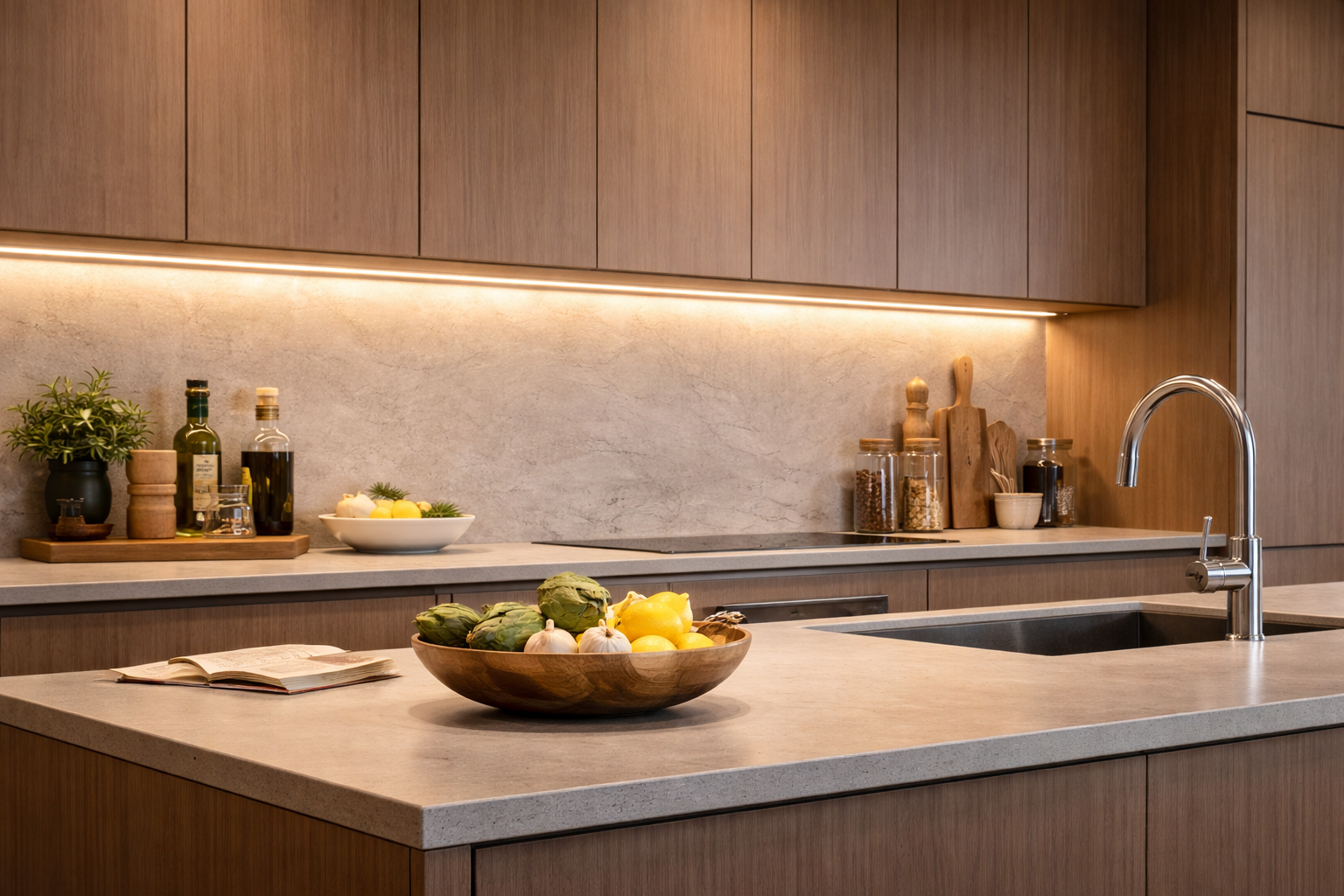

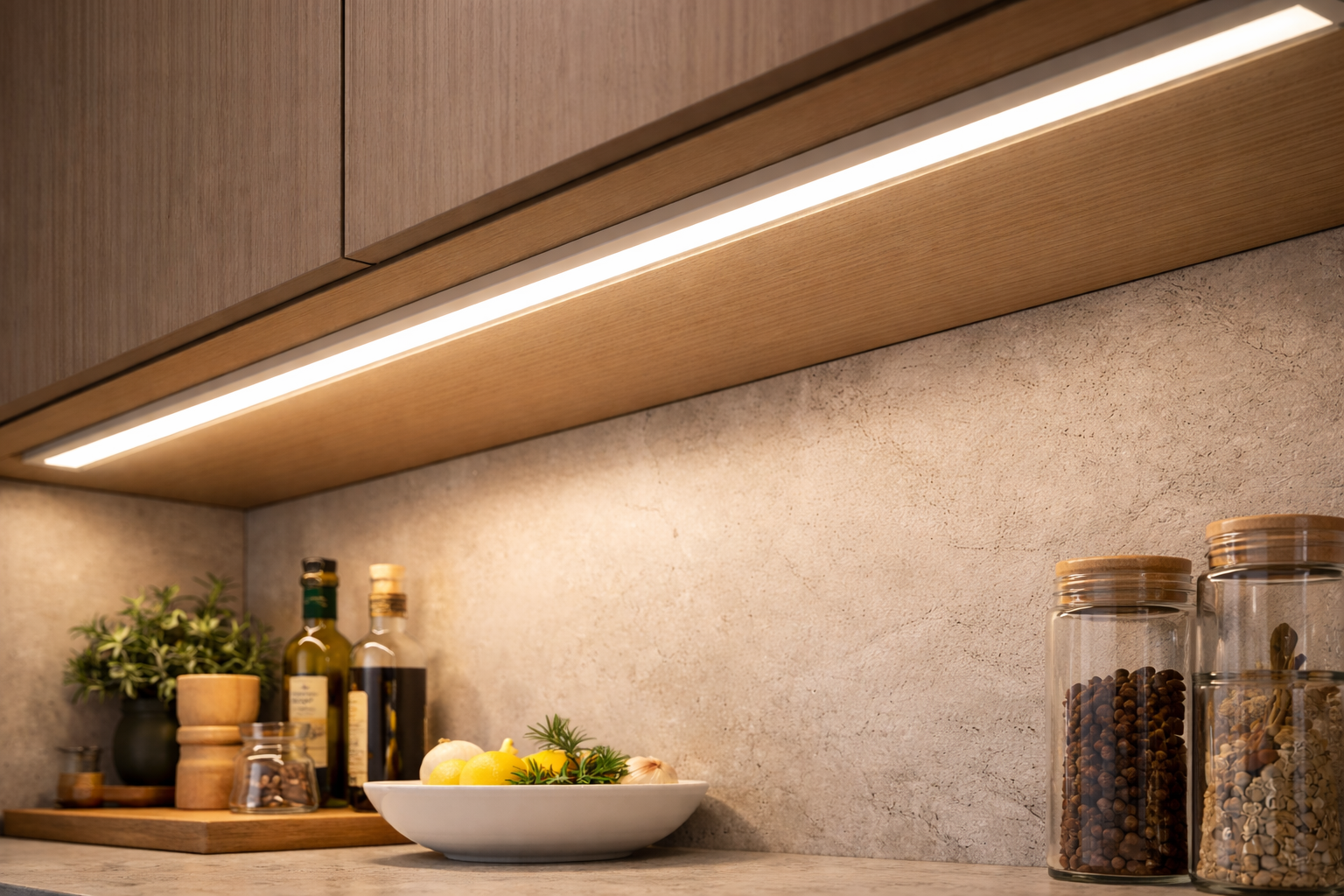

Designed for under-cabinet lighting in kitchens and built-in furniture. The 6.6mm ultra-slim PCB fits tight aluminum profiles, while tinned copper + solderless installation improves reliability and speeds up on-site assembly. Tunable white 2700K–6500K (2765) helps you switch from warm ambience to crisp task light.
